Crypto Pipeline Project

This project is a comprehensive implementation of a full pipeline to first extract, load and transform (ETL) cryptocurrency information from the CoinGecko API, followed by data analysis and Machine Learning models to predict the price of cryptocurrency in the future.

Logo image

Table of contents

Overview of the project

This project is about designing a whole pipeline for processing cryptocurrency information and make predictions in the future.

Across 4 different stages, I have managed the various steps of the full process, starting by the Extract, Transform and Load (ETL) process, then I have performed data analysis and engineering, and finally built Machine Learning (ML) models that can predict the price of cryptocurrency 1 day ahead, based on the previous 7 days activity and other features.

The entire workflow has been divided in 4 stages or tasks:

  1. Request raw information from CoinGecko API and store data files locally.
  2. Transform local information and load it into a Postgres database instance.
  3. Analyze data using SQL queries.
  4. Build ML models and predict future prices of cryptocurrency.

Project layout

As a reference guide for the repository file structure, I show a diagram with the most relevant files:

.
├── assets/                      # Images for the README
├── codes/                       # Source code and scripts for each task
│   ├── 1_task1/                 # Code for API requests
│   │   ├── crypto_datafiles/    # Local storage for data files from the API
│   ├── 2_task2/                 # Code for loading information into Postgres
│   ├── 3_task3/                 # Code for data engineering using SQL
│   │   ├── data/                # Local storage for static dataset
│   └── 4_task4/                 # Code for data analysis and ML models
│       ├── images/              # Images for data analysis and ML predictions
├── Basic_research.md            # Notes on research background
└── README.md                    # Project overview and instructions

How to install

In the next subsections, I explain how to set up your local environment to run this project. As a general reference, I’ve used Python 3.12 and built a Docker setup using Docker 28.3.

Reference (used to develop the solutions):

Docker

The official Docker website offers a guide to install Docker in any operating system: link to Docker installation guide. Here are the instructions for Ubuntu:

# Open a terminal and run the following commands

# Uninstall possible conflicting packages:
for pkg in docker.io docker-doc docker-compose docker-compose-v2 podman-docker containerd runc; do sudo apt-get remove $pkg; done

# Add Docker's official GPG key:
sudo apt-get update
sudo apt-get install ca-certificates curl
sudo install -m 0755 -d /etc/apt/keyrings
sudo curl -fsSL https://download.docker.com/linux/ubuntu/gpg -o /etc/apt/keyrings/docker.asc
sudo chmod a+r /etc/apt/keyrings/docker.asc

# Add the repository to Apt sources:
echo \
  "deb [arch=$(dpkg --print-architecture) signed-by=/etc/apt/keyrings/docker.asc] https://download.docker.com/linux/ubuntu \
  $(. /etc/os-release && echo "${UBUNTU_CODENAME:-$VERSION_CODENAME}") stable" | \
  sudo tee /etc/apt/sources.list.d/docker.list > /dev/null
sudo apt-get update

# Install the Docker packages:
sudo apt-get install docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

# Verify that the installation is successful by running the hello-world image:
sudo docker run hello-world

# This command downloads a test image and runs it in a container. When the container runs, it prints a confirmation message and exits.

It is possible that your Docker installation does not give full permissions to your user. For my Ubuntu environment, a created a bash script that gets all user permissions to run Docker, you can run it as follows:

# Give permissions to the script
chmod +x activate_docker.sh

# Set the correct docker permissions
./activate_docker.sh

# As prompted by the previous command output, run the following command
docker ps

# It should list all the containers without needing root privileges, meaning your user has correct permissions.

PostgreSQL

PostgreSQL is an object-relational database that I will use to store our data. To set up a Postgres image using Docker, follow this guide.

Ubuntu instructions:

# Install the Postgres image (choose your own name and password) and set it to listen on Port 5432
$ docker run --name <postgresname> -e POSTGRES_PASSWORD=<password> -p 5432:5432 -d postgres

⚠️ Important: if you are replicating this project, at this point you have to create your .env file for local variables, which will be read later by the source code. The .env file is ignored by Git, so you can safely store sensitive information there: it will only be accessible in your local environment.

In the root folder of the repository, there is a file called .env.template which holds all the required variables.

Instructions: make a copy of this file and save it as .env. There, update the Postgres credentials:

At this point, a Docker container has already been created with the postgres instance. Here are some useful commands to manage Docker:

# See all active containers:
docker ps

# See all active and inactive containers:
docker ps -a

# Stop a container (set inactive):
docker stop <container_name>

# Remove a docker container (must be inactive):
docker rm <container_name>

# Start a container (set active):
docker start <container_name>

It is also necessary to install the postgresql-client (psql), the instructions can be found in this guide.

For Ubuntu:

# Install psql (the PostgreSQL command-line client):
sudo apt update
sudo apt install postgresql-client

# Check your version, should 16.9 or higher:
psql --version

It’s time to check that everything is running correctly, so let’s access to the postgres instance that you’ve created before using a shell command:

# Connect to the Docker instanc (it asks for your password):
psql -h localhost -p 5432 -U postgres

# You can exit from psql by using the command 'exit'

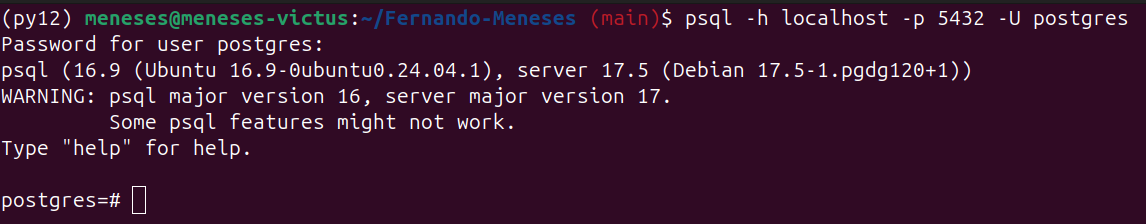

If the connection was successful, an output like this should appear:

Successful psql connection

Coingecko API

The cryptocurrency information for this project will come from the Coingecko API. Although Coingecko allows free requests without an API key, the service is limited in that way, see the official website.

In order to improve our data resources, I will work with the free demo version, which provides the following benefits:

For the free demo version, it’s necessary to get a personal API key by following these instructions.

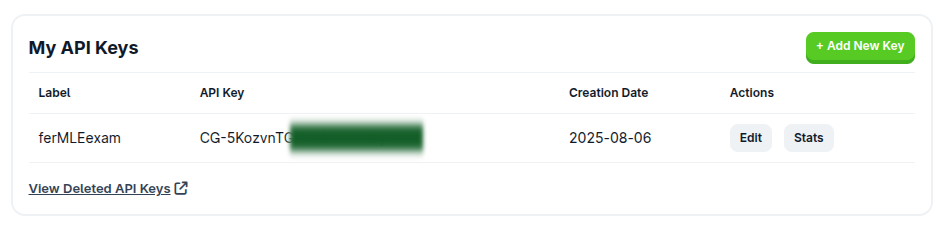

To check that the API key has been successfully created, the developers/dashboard section in CoinGecko should look like this:

Successful API key

⚠️ Important: if you are replicating this project, never share your API key with anyone nor post it publicly. To use the API key in this project, you have to safely store it in the .env file.

Instructions: register the API key in the .env file:

To check that you API is working, one easy way is by using the Ping Endpoint and replacing your_API_key by the correct value:

https://api.coingecko.com/api/v3/ping?x_cg_api_key=your_API_key

The following output should appear:

Successful ping endpoint using API key

Guides for each stage

The following documentation allows the reader to replicate the entire project code step-by-step and interpret the outcomes. As the whole project is about cryptocurrency, it is a good idea to have some background on the topic, so decisions are driven by knowledge. The Basic_research.md file (in the root folder) is a brief guide to criptocurreny that I’ve made focusing on critical aspects, feel free to explore it!

IMPORTANT: the python scripts are prepared to run using Docker, as it will be explained later. If the reader prefers to directly run the python scripts, first they have to access the file, follow the instructions and uncomment certain lines that enables direct running.

Stage 1: API requests

In the CoinGecko API there is information for over 3,000 cryptocurrencies, but in this project we will only focus in three specific coins:

In this stage, I’ve been guided by the following goals:

1. Create a **command line Python app** that receives an ISO8601 date (e.g. 2017-12-30) and a coin identifier (e.g. bitcoin), and downloads data from /coins/{id}/history?date=dd-mm-yyyy endpoint for that whole day and stores it in a local file. 2. Add proper Python logging to the script, and configure a CRON entry that will run the app every day at 3am for the identifiers `bitcoin`, `ethereum` and `cardano`. 3. Add an option in the app that will bulk-reprocess the data for a time range. It will receive the start and end dates, and store all the necessary days’ data.

My approach is coded in /codes/1_task1/main.py, and it is prepared to run from Docker. The code includes the following features:

As a first step, it’s necessary to build the docker container, which I name api_request:

docker build -t api_request .

Next, in order to run the main script, there are two options:

  1. Single-day request. In this case, run the following command:
docker run \
  --rm \   # Automatically remove the container when it exits
  --env-file "$(realpath ../../.env)" \   # Load environment variables from .env file
  -u $(id -u):$(id -g) \   # Run container with the current user's UID and GID (avoids permission issues)
  -v "$(pwd)/crypto_datafiles:/app/crypto_datafiles" \   # Mount local folder to container's /app/crypto_datafiles
  api_request:latest \   # Docker image name and tag
  <coin> \   # Positional argument for the coin ID (e.g. bitcoin)
  <date>     # Positional argument for the date (YYYY-MM-DD)

For example:

docker run --rm --env-file "$(realpath ../../.env)" -u $(id -u):$(id -g) -v "$(pwd)/crypto_datafiles:/app/crypto_datafiles" api_request:latest cardano 2025-01-17
  1. Bulk process, for a date range and option for concurrent processing. In this case, run the following command:
docker run \
  --rm \   # Automatically remove the container when it exits
  --env-file "$(realpath ../../.env)" \   # Load environment variables from .env file
  -u $(id -u):$(id -g) \   # Run container with the current user's UID and GID (avoids permission issues)
  -v "$(pwd)/crypto_datafiles:/app/crypto_datafiles" \   # Mount local folder to container's /app/crypto_datafiles
  api_request:latest \   # Docker image name and tag
  --bulk \ # Allows bulk processing
  --start <YYYY-MM-DD> \ # Initial date for the time interval
  --end <YYYY-MM-DD> \ # Final date for the time interval
  --workers <N> \ # Number of workers for concurrent requests (default=1)
  <coin> \   # Positional argument for the coin ID (e.g. bitcoin)

For example:

docker run --rm --env-file "$(realpath ../../.env)" -u $(id -u):$(id -g) -v "$(pwd)/crypto_datafiles:/app/crypto_datafiles" api_request:latest --bulk --start 2024-09-01 --end 2025-07-31 bitcoin

Daily CRON

Finally, let’s configure the CRON entry that will run the app every day at 3am. Because I’m using docker, there could be some issues with the relative paths, so the reader has to set your absolute paths manually. Follow these instructions:

  1. Open the file /codes/1_task1/run_daily.sh.

  2. Find the path from your home directory to the root folder of this repository.

  3. Replace that path for in lines 5 and 6, for variables `ROOT` and `ENV_FILE`. In Ubuntu, the relevant path can be found by opening a shell in the root directory of this repository and then running the command:

# Run in the root directory of the project
pwd
  1. Check the docker path in line 8, for variable DOCKER. To find the path, the reader can run the following command in the shell:
which docker

If the path is different than “/usr/bin/docker”, update it accordingly.

  1. The file run_daily.sh is ready, close it.

  2. Open a shell from the folder in which run_daily.sh is located.

  3. Make the script executable by running:

chmod +x run_daily.sh
  1. Check that the script is working by executing it manually:
./run_daily.sh

The reader should get the API response and new files generated in the folder /codes/1_task1/crypto_datafiles/.

  1. Edit the crontab by running:
crontab -e

A new shell should open.

  1. Go to the end of the shell and paste the following lines, replacing accordingly:
SHELL=/bin/bash
PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin

* 3 * * * <YourPath>/codes/1_task1/run_every_60_seconds.sh

  1. Save the crontab by pressing CTRL+S and then exit by pressing CTRL+X.

  2. Check that the crontab is updated by running:

crontab -l

The reader should see the lines that they pasted before.

Done! The job is scheduled to run daily at 3am.

Stage 2: Database loading

In this Task, I will load the Postgres database with the local files downloaded in Task 1, and also with an alternative, older dataset. Let’s see the goal for this stage:

Create two tables in Postgres. The first one should contain the coin id, price in USD, date and a field that stores the whole JSON response. The second table should aggregate data: it should contain the coin id, the year and month and the maximum/minimum values for that period.

As a first step, make sure the postgres instance is running:

# In a shell:
docker ps

# You should the postgres image you activated at the beginning. If not, start it:
docker start <container_name>

In my environment, the docker ps output looks like this:

Checking Docker container

Load daily table

Now, make sure that the working folder is /codes/2_task2/. I start by building the table for daily data, and the first step is designing the schema. In a shell, run the following command:

# Run and input your password when prompted:
psql -h 127.0.0.1 -U postgres -d postgres -f create_table1_daily_schema.sql

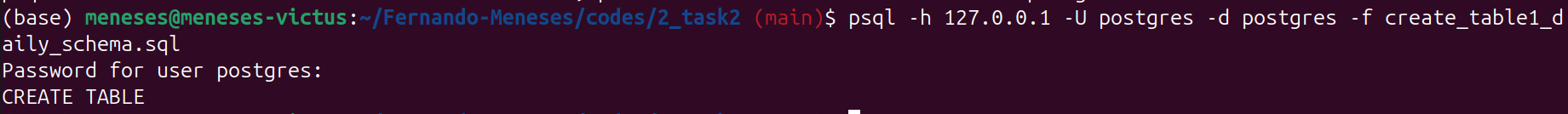

If successful, there should be an output "CREATE TABLE" on screen, similar to this one:

Successful SQL table creation

The created table can be checked in the PostgreSQL instance using psql:

# Enter psql (it prompts for password)
psql -h 127.0.0.1 -U postgres -d postgres

# List tables (you should see 'crypto_daily_data' there):
\dt

# Explore your table:
\d crypto_daily_data

# Exit table view:
q

# Exit postgres:
exit

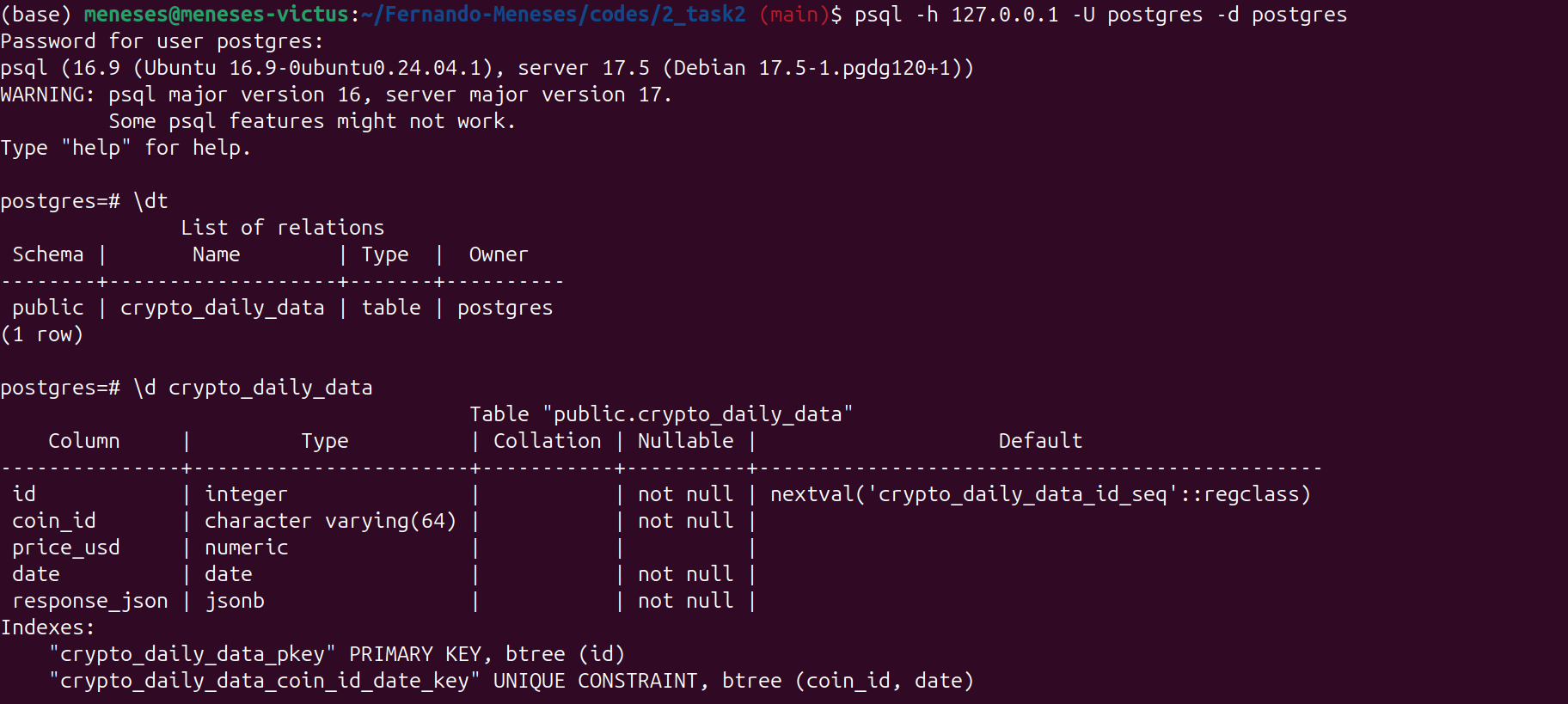

The reader should see something like this:

Checking SQL table creation using psql

Now that the crypto_daily_data table exists, I will populate it with the information from the local data files downloaded in Task 1:

I will start by building the docker container, named load_postgres:

docker build -t load_postgres .

Next, run the following script to load the postgres database:

docker run --rm \
  --env-file "$(realpath ../../.env)" \
  --add-host=host.docker.internal:host-gateway \
  -u $(id -u):$(id -g) \
  -v "$(realpath ../..):/app" \
  load_postgres:latest

There is an additional configuration --add-host=host.docker.internal:host-gateway for this docker command, because I’m running a database connection from inside the container, so I need to set the connection properly. Notice that if the reader wants to run the python script main2.py directly, there are instructions in the file to uncomment certain lines.

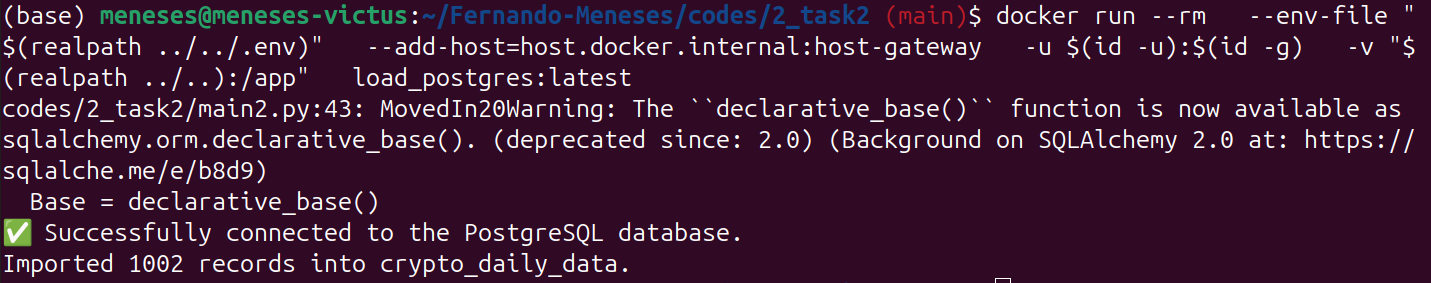

If the loading command was run successfully, there should be an output like this:

Successful loading for daily table

If the reader runs the docker command again, they should get repeated logs telling you that the entries are already loaded in the table:

Skipping duplicate entries

That’s alright, it means that the information is already in the table!

Alternatively, the information in the postgres table can be checked by running the following commands in a shell:

# Access postgres (it requires your password)
psql -h 127.0.0.1 -U postgres -d postgres

# Print table values via SQL
SELECT id,coin_id,price_usd,date FROM crypto_daily_data LIMIT 10;

# Exit
exit

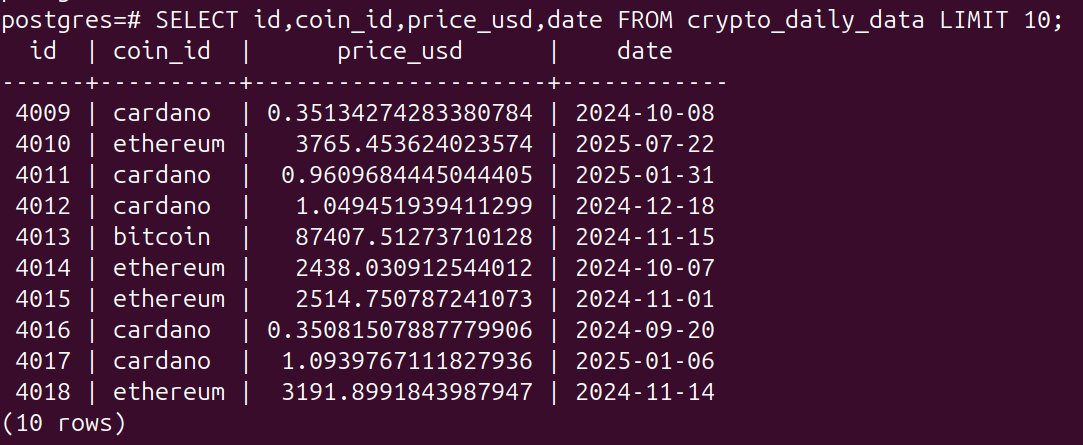

The table should look like this:

Skipping duplicate entries

Build aggregated table

In order to build the table with aggregated information about the daily data, named crypto_aggregated_info, I use a SQL query that reads the crypto_daily_data table in Postgres and make aggregation operations. The schema is the following:

First, create the table schema by running this shell command:

# Run and input your password when prompted:
psql -h 127.0.0.1 -U postgres -d postgres -f create_table2_aggregated_schema.sql

Then, run a second query that populates the crypto_aggregated_info table with the appropriate aggregation:

# Run and input your password when prompted:
psql -h 127.0.0.1 -U postgres -d postgres -f populate_table2.sql

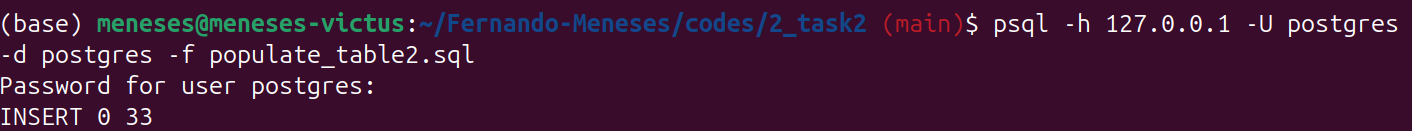

If successful, there should be an output like this, which informs about the new insertions in the table:

Check table 2 insertions

If the reader wants to take a look at the table from Postgres, run the following commands:

# Access postgres (it requires your password)
psql -h 127.0.0.1 -U postgres -d postgres

# Print table values via SQL
SELECT * FROM crypto_aggregated_info LIMIT 10;

# Exit
exit

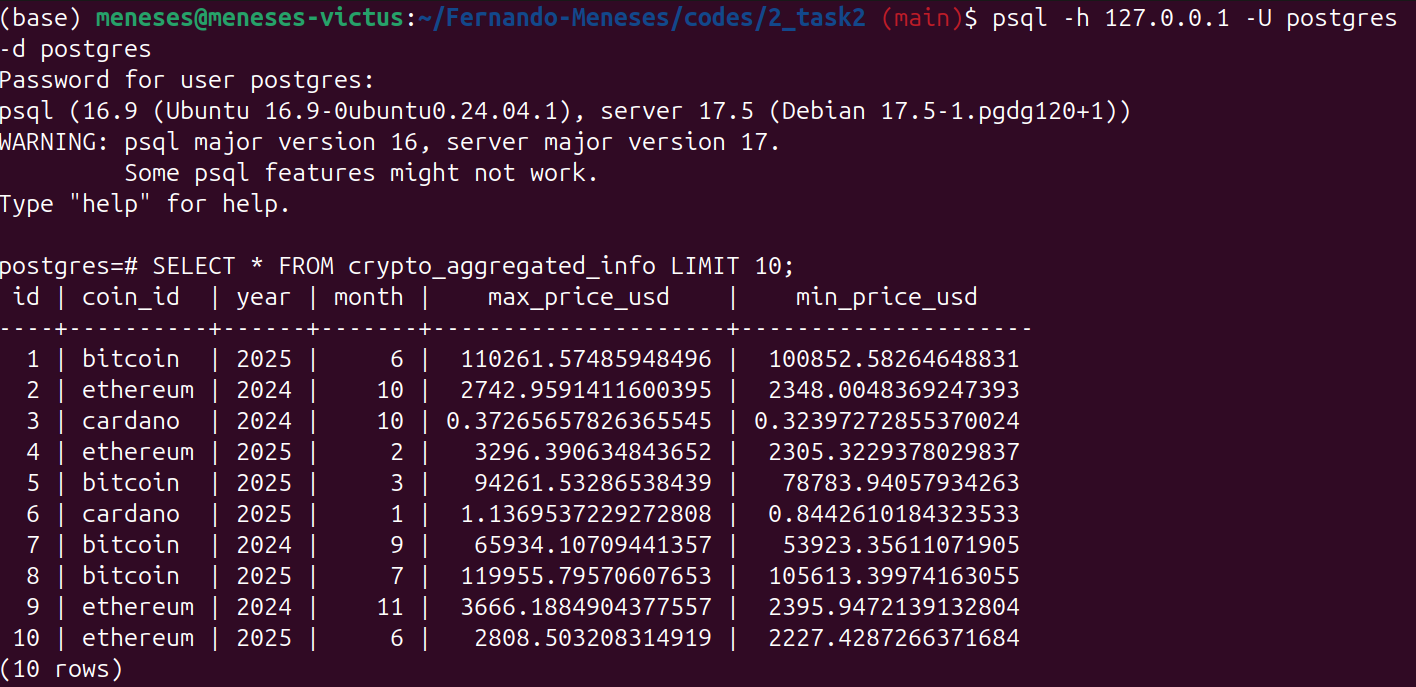

This is an example of how crypto_aggregated_info should look like:

Example of Table 2 (aggregated)

Stage 3: Data analysis

In this stage, I analyze the data from table crypto_daily_data, previously stored in the postgres database. Alternatively, I also prepare files to work with the alternative, older dataset.

In order to load the alternative dataset, move to the folder ./codes/3_task/ directory and run the following command in a shell:

# Map the SQL file between the docker and the local host:
docker cp data/coin_data.sql <your_docker_container_name>:/coin_data.sql

# Execute the container:
docker exec -it <your_docker_container_name> bash

# Once in the container, access to postgres:
psql -U postgres

# Once in postgres, run the SQL query:
\i /coin_data.sql

# Exit from postgres:
exit

# Exit from the container:
exit

If the information was successfully uploaded, then the new tables coin_data and coin_month_data in postgres can be seen by running the following commands in a shell:

# Access postgres (it requires your password)
psql -h 127.0.0.1 -U postgres -d postgres

# Print table values via SQL
\dt

# Exit
exit

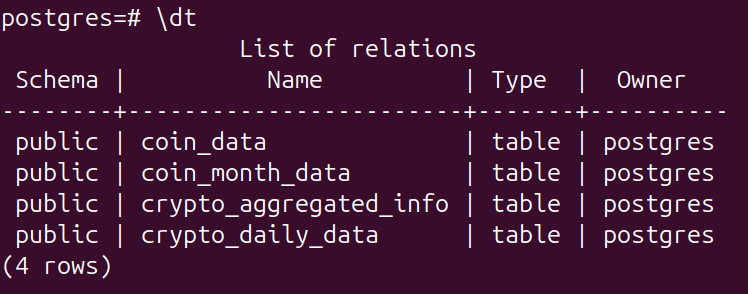

There should be an output similar to this one:

Check all tables in Postgres

If the reader wants to dive into the coin_month_data table (alternative dataset), they will discover that the data covers the period from 01-2021 to 09-2021 for the cryptocoins bitcoin, ethereum and cardano. Check this information by running this SQL query:

# Enter psql (it requires your password)
psql -h 127.0.0.1 -U postgres -d postgres

# Obtain all rows from the table, ordered by month
SELECT * FROM coin_month_data ORDER BY month;

# Exit
exit

Obtaining averages

I created two SQL queries crypto_daily_data_avg_price.sql and coin_data_avg_price.sql for obtaining averages, working with the API downloaded data or the alternative dataset. Both queries share the same logic, but the source table and variables are different.

The first query, working with table crypto_daily_data, can be run from a shell:

# Run the SQL query in the postgres instance (it asks for your password) and print the results on screen
psql -h 127.0.0.1 -U postgres -d postgres -f crypto_daily_data_avg_price.sql

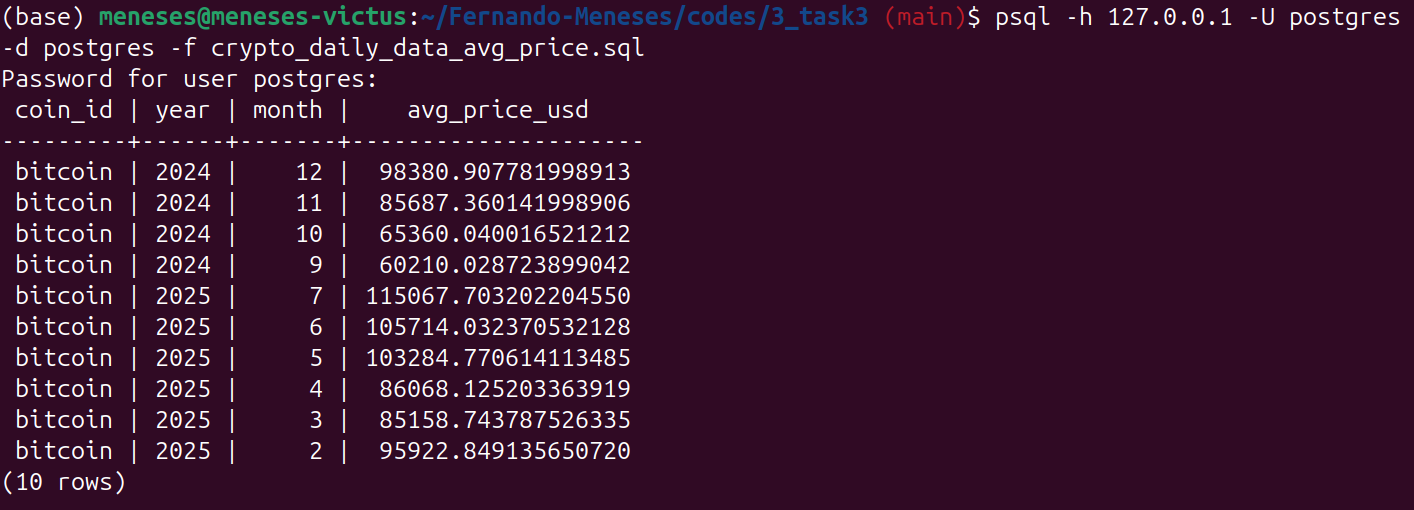

The reader should get an output similar to this one:

Results of averaging SQL query

Now, run the SQL query for the table coins_month:

# Run the SQL query in the postgres instance (it asks for your password) and print the results on screen
psql -h 127.0.0.1 -U postgres -d postgres -f coin_data_avg_price.sql

This time, the results should reflect the period 2021-01 to 2021-09.

Analyzing streaks

Getting averages was relatively easy, I now advance to a more advanced analysis:

Calculate for each coin, on average, how much its price has increased after it had dropped consecutively for more than 3 days. In the same result set include the current market cap in USD (obtainable from the JSON-typed column).

Some clarifications:

I see the following problem for this approach:

Decision: define a streak as a more-than-3-days consecutive drop in price followed by a price increase. If there is no price increase, this period of time is not counted towards the average that we want to calculate.

Furthermore, I have added more features to the output table to have a more complete picture of the analysis. The full schema of the output SQL table is the following:

I’m ready to proceed now. I have created two SQL files, one for each dataset:

In both queries, I have added a functionality to select the time span to analyze. To run the SQL query in postgres, following inputs must be specified:

Note: if the initial and final input dates do not produce a valid time span, the query will run anyway and return a table with 0 rows.

The command to run any of the SQL queries from a shell is the following:

# Run the SQL query in the postgres instance (it asks for your password) and print the results on screen
psql -h 127.0.0.1 -U postgres -d postgres \
  -v init_date=<init_date> \
  -v final_date=<final_date> \
  -f <SQL_query>

For example, to run a query on a restricted time period in the crypto_daily_data table:

psql -h 127.0.0.1 -U postgres -d postgres \
  -v init_date='2025-05-02' \
  -v final_date='' \
  -f SQL_streaks_3days_drop_crypto_daily_data.sql

After running the query, the output should look like:

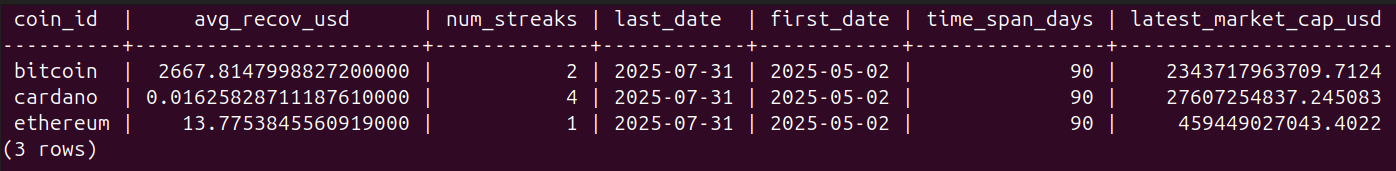

Example of SQL output for Task 3b, in table crypto_daily_table

On the other hand, if the query is set to analyze the data in the entire coin_data table:

psql -h 127.0.0.1 -U postgres -d postgres \
  -v init_date='' \
  -v final_date='' \
  -f SQL_streaks_3days_drop_coin_data.sql

And the output should be the following one:

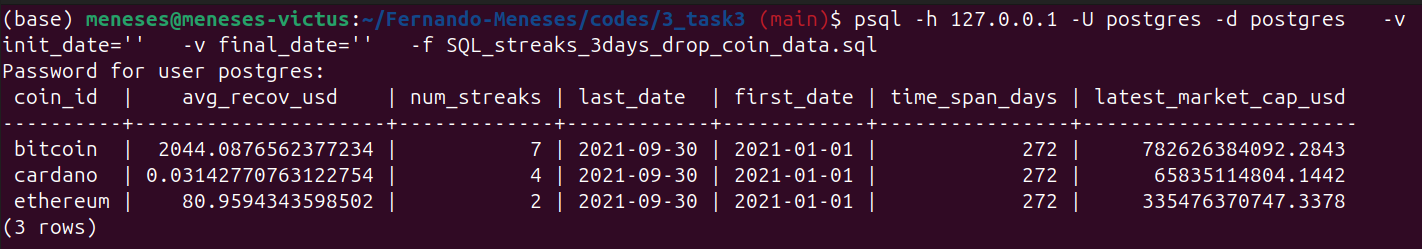

Example of SQL output for Task 3b, in table coin_data

Stage 4: Machine Learning predictions

As the final stage in this project, I predict the future prices of cryptocurrency, 1 day ahead. In this section, I use python scripts directly, with version Python 3.12.*.

Price history

Let’s start with a simple goal:

Plot the prices of selected crypto coins for the last $N$ days, from a given date.

The script for this activity is view_price_history.py, and accepts several arguments:

# Run from shell in ./codes/4_task4/ folder
python view_price_history.py \ # Basic command, can run as standalone
  --table <table> \ # Select either crypto_daily_table (default) or coin_data
  --coins <coin or coins> \ # Select coins to be analyzed, separated by space, default: all
  --last_date <YYYY-MM-DD> \ # Select the last date, default: latest
  --days <N> \ # Select the number of days to look back into, default: 30
  --save_image <True> # Condition to save image, default: False

Here are some examples along with their output images:

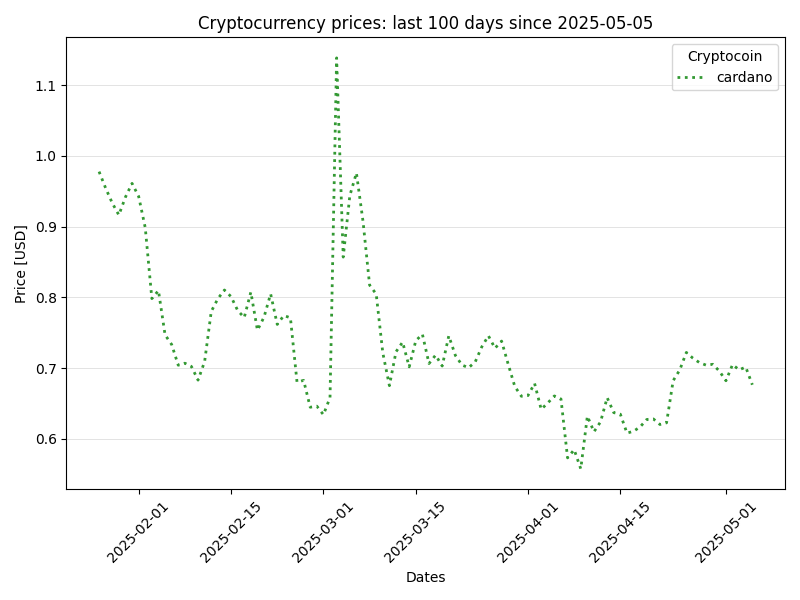

python view_price_history.py --coins cardano --days 100 --last_date 2025-05-05 --save_image True

Check all tables in Postgres

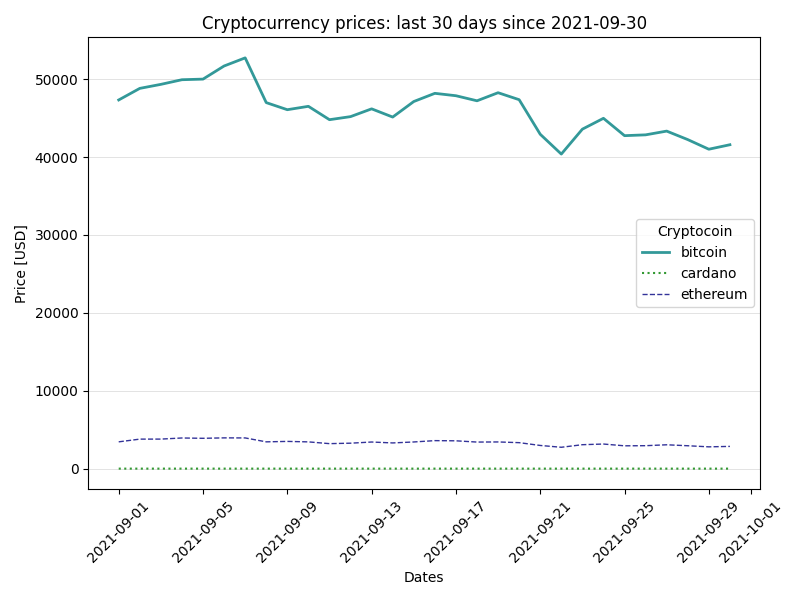

python view_price_history.py --table coin_data --save_image True

Check all tables in Postgres

Evaluate risks

As a next step, I set the goal of assigning risk types to each cryptocurrency:

Define 3 types of coins: “High Risk” if it had a 50% price drop on any two consecutive days, during a given calendar month, “Medium risk” if it dropped more than 20%, and “Low risk” for the rest (in this same fashion of consecutive days).

Here, “price drop on any two consecutive days” might be interpreted in two different ways, which I illustrate with the following example of coin prices (days are consecutive):

series_A = [100,110,100,40,60,20,15,20]

series_B = [100,110,100,40,60,20,5,5]

  1. If I consider “price drop on any two consecutive days” in the sense that the price dropped from day $T_{i}$ to day $T_{i+1}$, then both series_A and series_B qualifies as High risk, because there the price dropped 50% from 100 to 40, and that’s enough.

  2. On the contrary, if “price drop on any two consecutive days” means that the price of day $T_{i+1}$ must be at least 50% lower than the price of the day $T_{i}$, AND the same must occur for days $T_{i+2}$ and $T_{i+1}$, then only series_B is High risk, because the price dropped from 60 to 20, and then from 20 to 5. In series_A, instead, such double 50% drop does not occur.

Decision: introduce a new parameter named drop_streak_days that defines the criterion for consecutive drops in price.

If drop_streak_days=1, then the algorithm follows the criterion explained in point 1.

If drop_streak_days=2, then the algorithm follows the criterion explained in point 2.

The parameter can be applied to any number $N \geq 1$.

The script for this activity is assign_risk.py, which accepts several arguments:

# Run from shell in ./codes/4_task4/ folder
python assign_risk.py \ # Basic command, can run as standalone
  --table <table> \ # Select either crypto_daily_table (default) or coin_data
  --streak_days <N> \ # Select the number of days for dropping-streak criterion, default: 1
  --risk_period_days <N> # Select the period, in days, for the evaluation period, default: 30

The results are displayed as a screen output and the updated dataframe is returned. I show an example for the crypto_daily_data table, using the softest criterion streak_days=1 (default) and risk_period_days=30 (default):

# Run from shell in ./codes/4_task4/ folder
python assign_risk.py --table crypto_daily_data

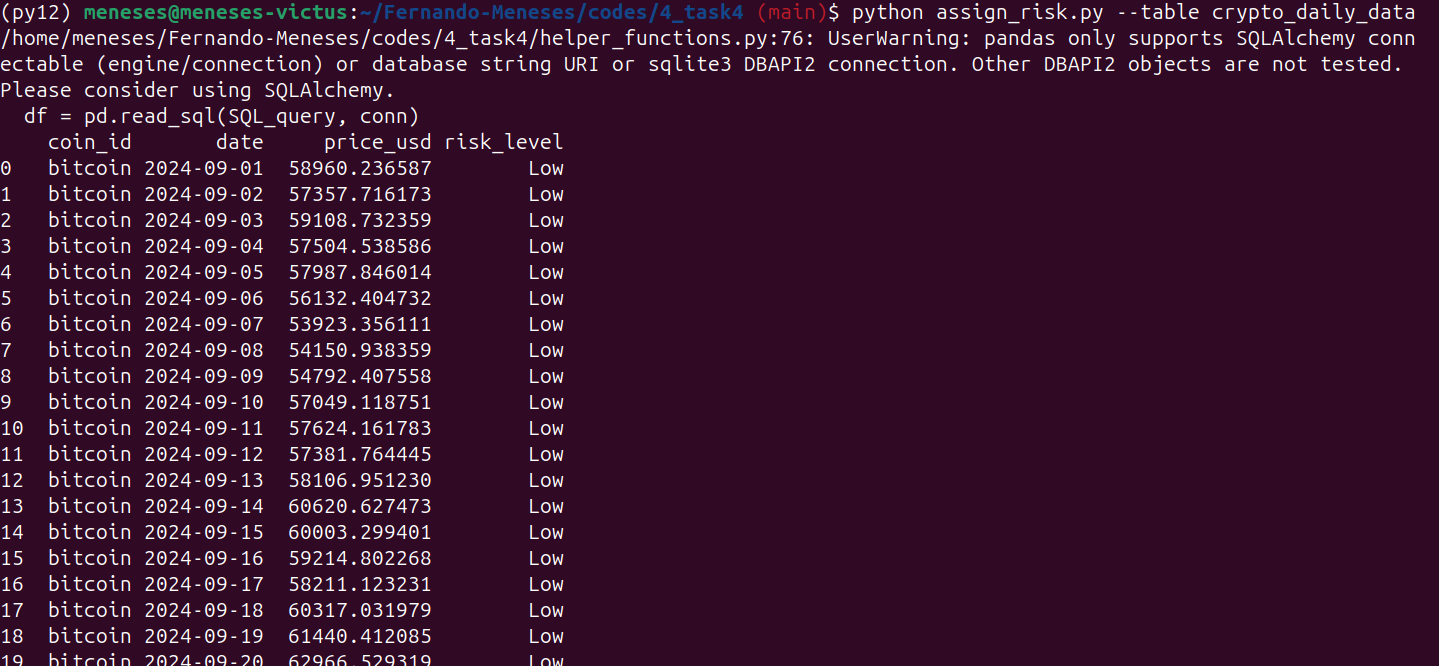

Risk assignment output for crypto_daily_data

Trend and variance

In this section, I analyze the general trend and variance for each day:

For each row-day, add a column indicating the general trend of the price for the previous 7 days (T0 vs. T-1 through T-7), and the variance of the price for the same 7 days period.

To avoid any confusions, I clarify the indexing: the current day is T0, one day before is T-1, and so on. Then 7 days before is T-7.

On the other hand, I have to define what “general trend of the price” means, and I have two ideas in mind:

  1. Option compare_extremes: Check the price difference $D_p$ between the current day T0, $p_0$ and 7 days ago T-7, $p_{-7}$. The formula is $D_p=p_0 - p_{-7}$. Then, I will assign three different categories based on the result and compared with a fraction $f$ of the $p_0$:
    • “Rising” if $D_p>T0*f$.
    • “Flat” if $ D_p <T0*f$.
    • “Droping” if $D_p<-T0*f$.

Note: using a fraction of the current value helps dealing with very small fluctuations compared to the price of the cryptocoin.

  1. Option slope: Same idea as before in terms of assigning categories based on the results $D_p$, but this time the definition of $Dp$ is different. Instead of subtracting the extreme values, I will perform a linear regression for the prices in the interval [T-7 to T0] and assign:
    • “Rising” if $D_p8>T0f$.
    • “Flat” if $ D_p*8 <T0*f$.
    • “Droping” if $D_p8<-T0f$.

Note: in this case, the slope $D_p$ is defined as the average change of price per day, then multiplying by 8 is equivalent to calculate the projected price difference in 8 days.

I think option 2 is much more representative, so I will keep that one as the default, but my code is functionalized to accept several parameters, according to broad criteria:

As for the variance, I will use the formal definition, which is implemented in the pandas library.

The script for this activity is assign_trend_variance.py, which accepts several arguments:

# Run from shell in ./codes/4_task4/ folder
python assign_risk.py \ # Basic command, can run as standalone
  --table <table> \ # Select either crypto_daily_table (default) or coin_data
  --trend <N> \ # Select trending criterion, either slope (default) or compare_extremes
  --window <N> \ # Select time window to calculate trend and variance, in days, default: 7
  --frac <f> \ # Select tolerance for trend criterion, a fraction of the current price, default: 0.05
  --plot_coin <coin> \ # Select bitcoin (default), cardano or ethereum to show results
  --save_image <True> # Condition to save image, default: False

In the following examples, I demonstrate how the script works with a tolerance fraction frac=0.05, which works reasonably well to identify rises and drops.

# Run from shell in ./codes/4_task4/ folder
python assign_trend_variance.py --window 7 --frac 0.05 --trend slope --save_image True

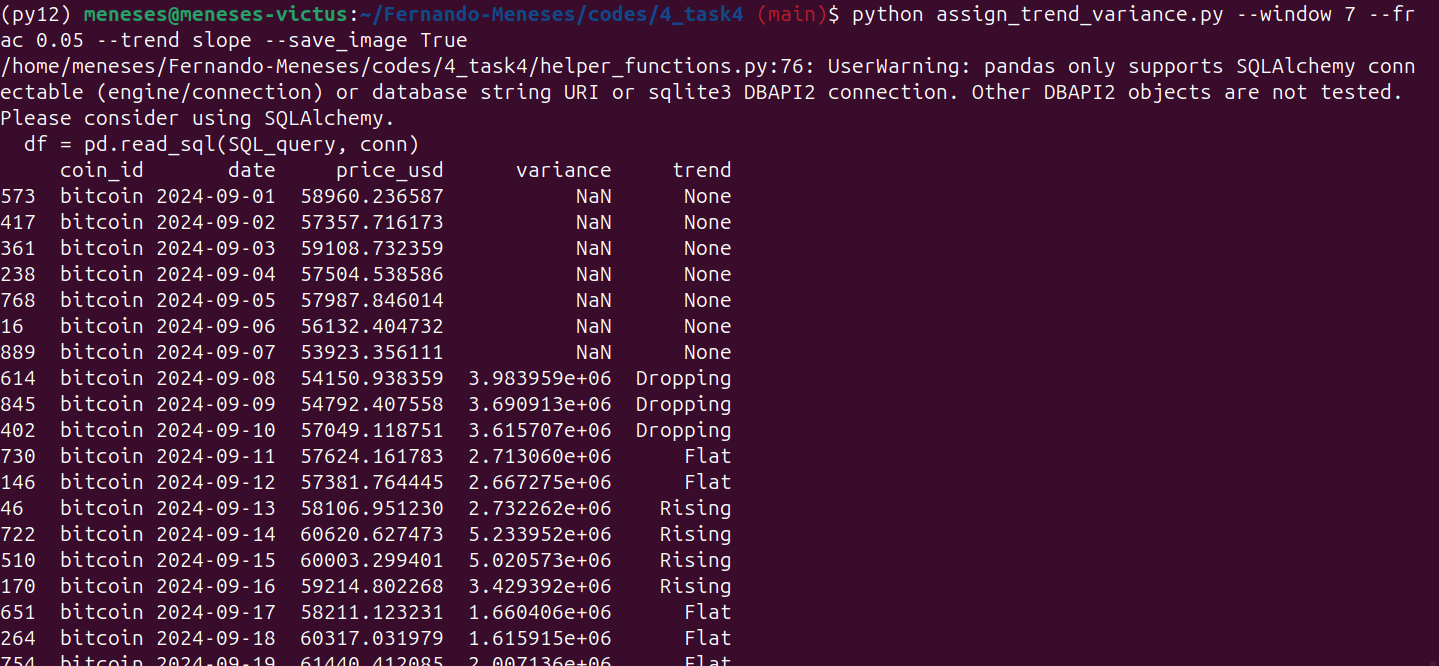

Trend and variance output for crypto_daily_data using the slope method

Trend and variance plot for crypto_daily_data using the slope method

# Run from shell in ./codes/4_task4/ folder

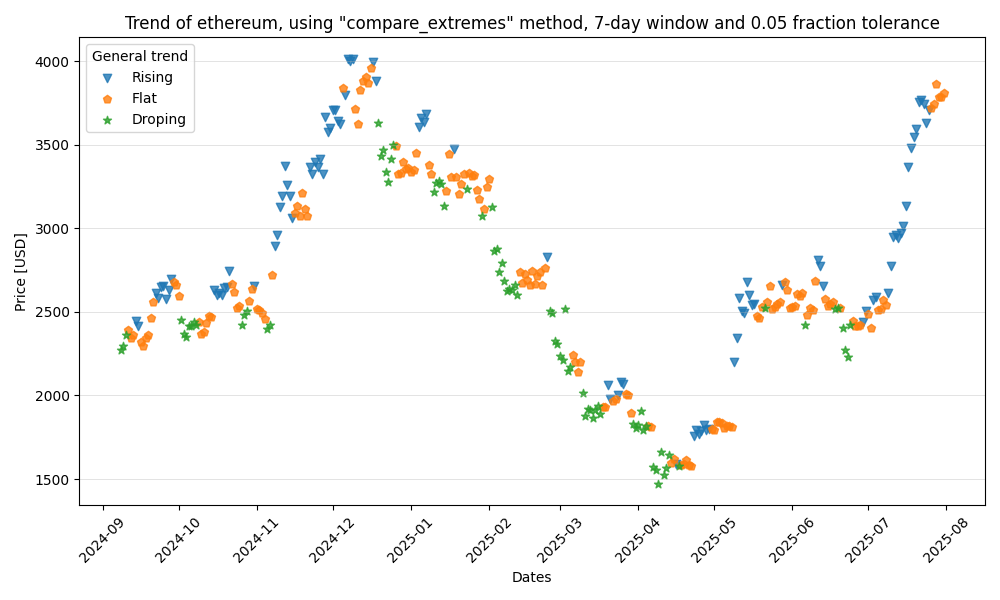

python assign_trend_variance.py --window 7 --frac 0.05 --trend compare_extremes --plot_coin ethereum --save_image True

Trend and variance plot for crypto_daily_data using the slope method

Note: in all cases, the first window values (7 by default) are missing for the trend and variance values, as there is not enough information to calculate them

Lagged prices and calendar features

In this section, I work with lagged prices and calendar features:

a. Instead of having only the price and date for each row, also include the price of the last 7 days as columns as well as the next day’s price, which will be used as a target variable. b. Add any other time calendar features such as the day of the week, the month or holidays.

In the script prepare_full_dataset.py, I have included all possible feature engineering and transformations that are allowed to apply to the dataset. By default, all of them are applied with the standard criteria described before. Below, all original and new features are described for the daily datasets are described:

Original features:

New features:

Transformations:

The script to build the full dataset is prepare_full_dataset.py, and it accepts each feature engineering process and method as separate inputs. By default, all transformations are set to False. The following example explains how to run the script:

# Run a shell from `./codes/4_task4/ folder and prompt:
python prepare_full_dataset.py \ # Basic command, can run as standalone
  --table <table> \ # Select either crypto_daily_table (default) or coin_data
  --apply_risk \ # Allow to apply risk assignments (default: False)
  --risk_streak_days <N> \ # Set option for dropping streak days in the risk assignment (default: 1)
  --risk_period_days <N> \ # Set option for evaluation period in the risk assignment (default: 30)
  --apply_trend_var \ # Allow to apply trend and variance assignments (default: False)
  --trend_method <N> \ # Set option for trending method in the trend/variance assignment (default: slope)
  --trend_var_window <N> \ # Set option for trend and variance window in the trend/variance assignment (default: 7)
  --trend_frac <f> \ # Set option for trending tolerance fraction in the trend/variance assignment (default: 0.05)
  --apply_lagged_prices \ # Allow to apply lagged prices assignments (default: False)
  --apply_calendar_features \ # Allow to apply calendar features (default: False)
  --apply_risk_mapping \ # Allow to make risk transformations (default: False)
  --apply_price_normalization # Allow to lagged prices normalization (default: False)

A few comments to understand how the script works:

If the reader wants to apply all transformation with the standard values, they should run the following script:

# Run a shell from `./codes/4_task4/ folder and prompt:
python prepare_full_dataset.py \
  --table crypto_daily_data \
  --apply_risk \
  --apply_trend_var \
  --apply_lagged_prices \
  --apply_calendar_features \
  --apply_risk_mapping \
  --apply_price_normalization

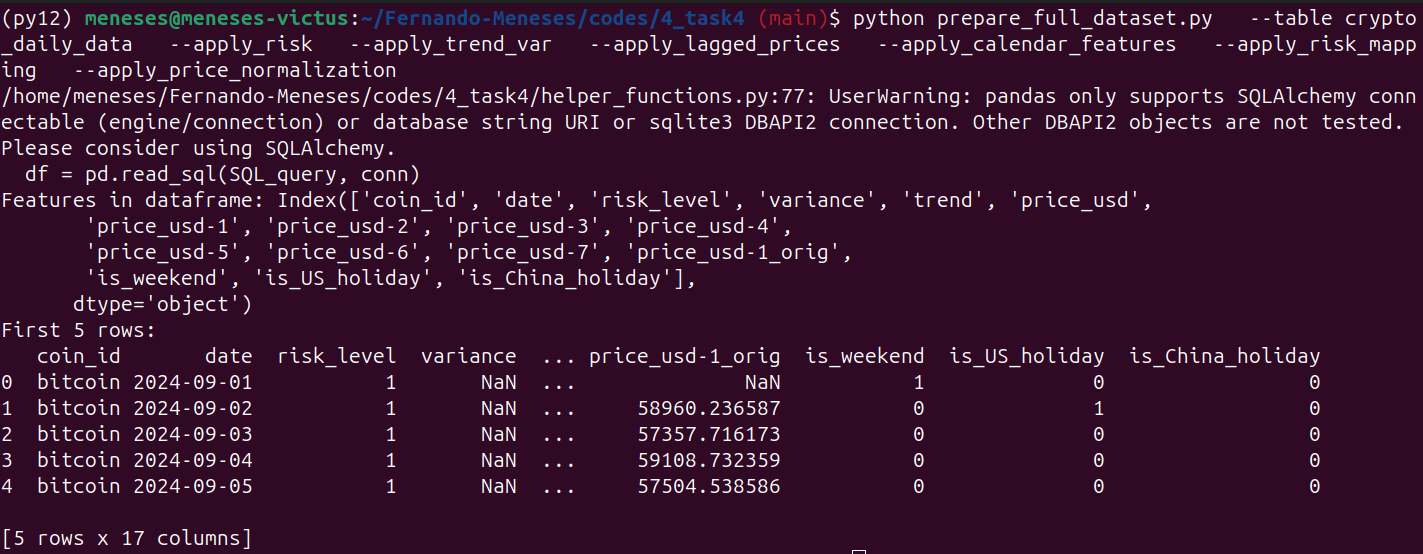

Full dataset after feature engineering

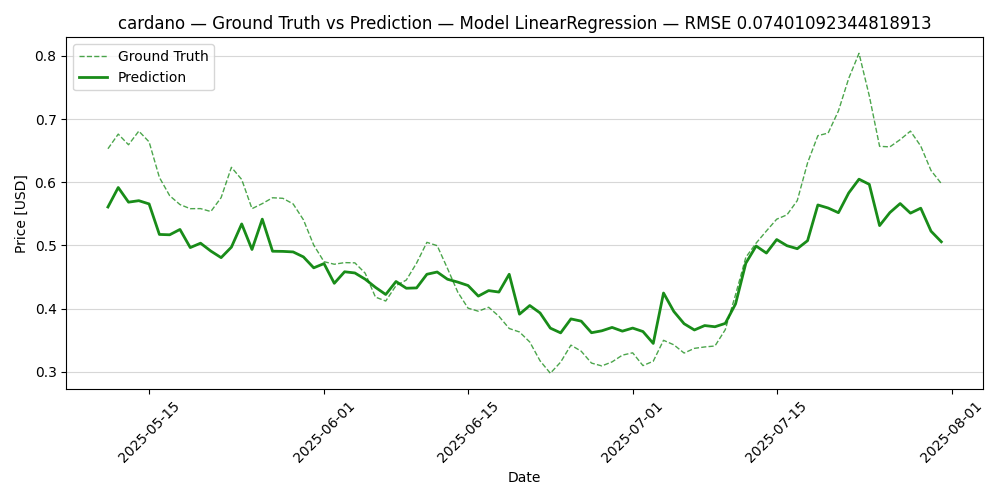

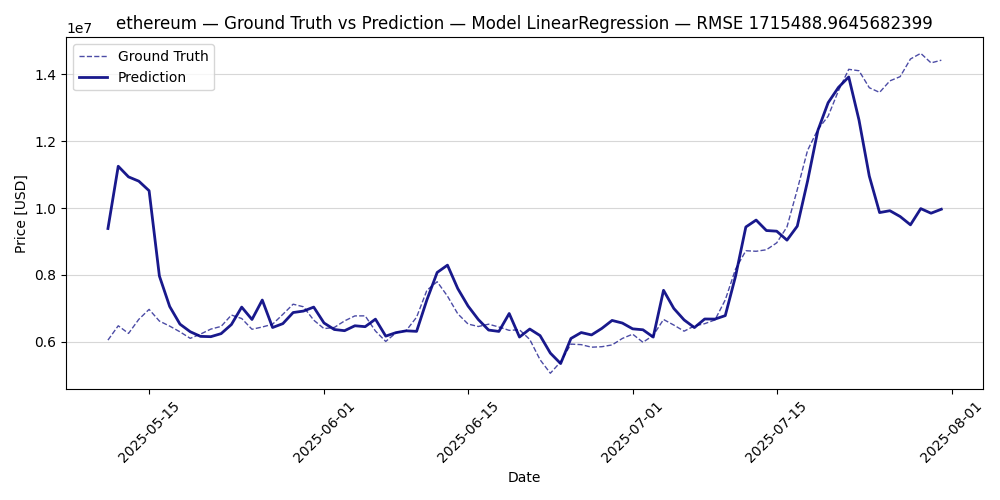

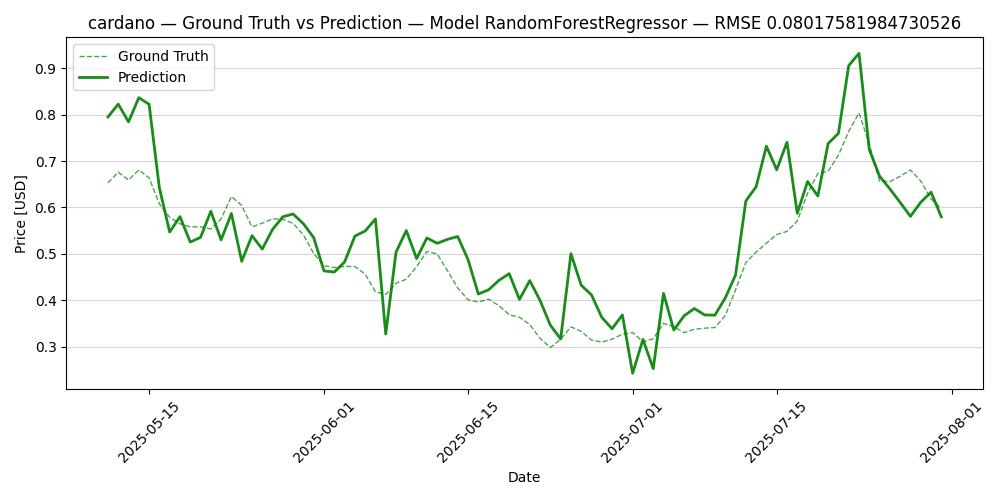

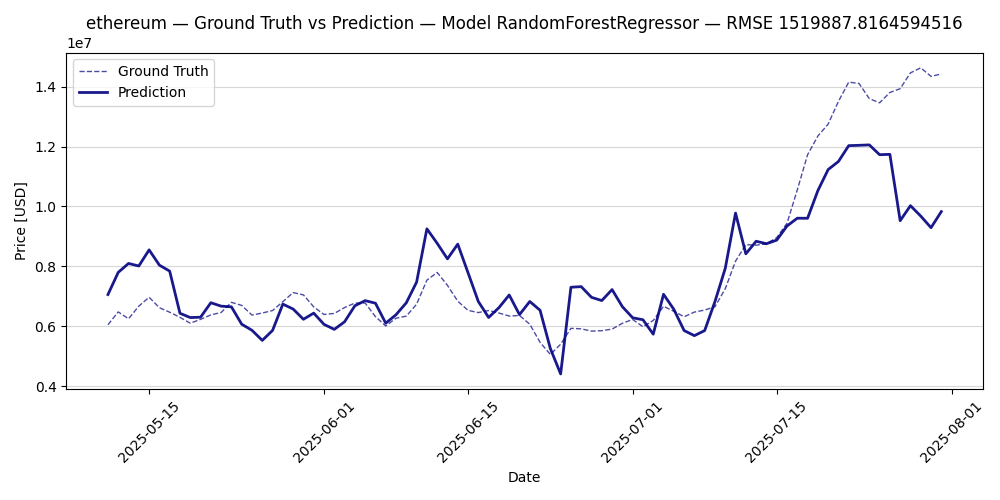

Machine Learning predictions

Finally, let’s make some price predictions!

For every (coin, date) row in the dataset with date T0, predict the next day's price (T1) based on the previous 7 days of the stock's price and the previous features.

For this stage, I will implement a relatively simple regression model. There are a lot of choices when designing a ML model, so I will explain some decisions:

Multiple coins handling:

pred_absolute = pred_normalized × price_usd-1_orig

Features:

I will keep all features as the ML model’s inputs except for:

I prepared two simple ML models to be trained:

The script make_ML_predictions.py processes the original cryptocurrency information making the selected transformations and then train and evaluate the chosen ML models. The script usage is the following:

# Run a shell from `./codes/4_task4/ folder and prompt:
python make_ML_predictions.py \ # Basic command, can run as standalone
  --table <table> \ # Select either crypto_daily_table (default) or coin_data
  --apply_risk \ # Allow to apply risk assignments (default: False)
  --risk_streak_days <N> \ # Set option for dropping streak days in the risk assignment (default: 1)
  --risk_period_days <N> \ # Set option for evaluation period in the risk assignment (default: 30)
  --apply_trend_var \ # Allow to apply trend and variance assignments (default: False)
  --trend_method <N> \ # Set option for trending method in the trend/variance assignment (default: slope)
  --trend_var_window <N> \ # Set option for trend and variance window in the trend/variance assignment (default: 7)
  --trend_frac <f> \ # Set option for trending tolerance fraction in the trend/variance assignment (default: 0.05)
  --apply_lagged_prices \ # Allow to apply lagged prices assignments (default: False)
  --apply_calendar_features \ # Allow to apply calendar features (default: False)
  --apply_risk_mapping \ # Allow to make risk transformations (default: False)
  --apply_price_normalization # Allow to lagged prices normalization (default: False)
  --allow_ML_Linear_Model \ # Allow to train and evaluate a Linear Regression model
  --allow_ML_RF_Model \ # Allow to train and evaluate a Random Forest (RF) Regressor model
  --RF_n_estimators \ # Set option for number of estimators in RF model
  --RF_max_depth \ # Set option for maximum depth in RF model
  --save_image # Allow to save the predictions vs ground truth results

If the reader wants to train all ML models using the default parameters, they should run the following script:

# Run a shell from `./codes/4_task4/ folder and prompt:
python make_ML_predictions.py \
  --table crypto_daily_data \
  --apply_risk \
  --apply_trend_var \
  --apply_lagged_prices \
  --apply_calendar_features \
  --apply_risk_mapping \
  --apply_price_normalization \
  --allow_ML_Linear_Model \
  --allow_ML_RF_Model
  --save_image True

Results for Linear Regression:

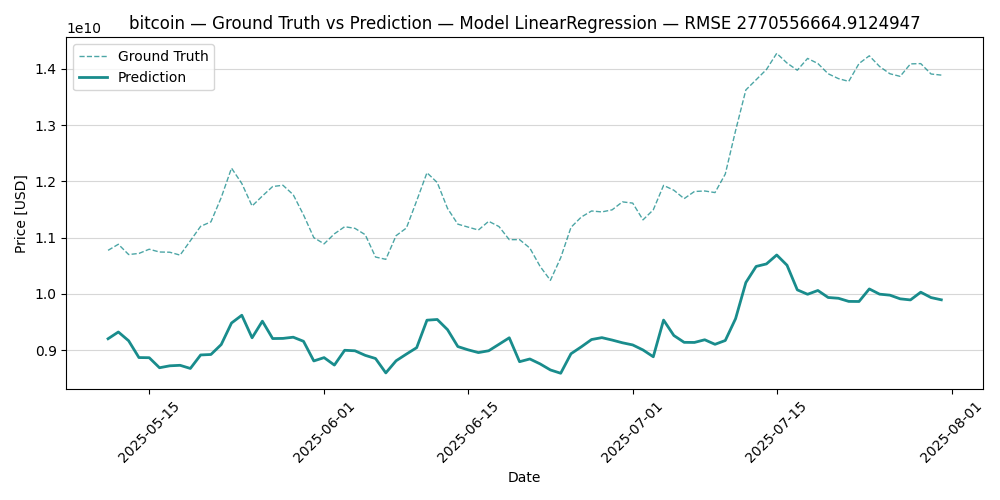

ML predictions on bitcoin, Linear Regression

ML predictions on cardano, Linear Regression

ML predictions on ethereum, Linear Regression

Models perform pretty well! I think that the bitcoin case is failing because of the normalization/rescaling process… the numbers are so big in the coin that any small mistake can produce large errors.

Results for Random Forest Regressor:

ML predictions on bitcoin, Linear Regression

ML predictions on cardano, Linear Regression

ML predictions on ethereum, Linear Regression

The results are summarized in this table, showin that the Random Forest Regressor (RF) performs better except for the cardano coin. However, the RF can be still optimized, so better performance can be expected.

Coin Model RMSE (test dataset)
bitcoin LinearRegression 2.8E8
bitcoin RandomForestRegressor 2.2E8
ethereum LinearRegression 1.7E6
ethereum RandomForestRegressor 1.5E6
cardano LinearRegression 0.07
cardano RandomForestRegressor 0.08

Conclusions

We have come to the end! From beginning to end, I built a pipeline that ingests data from cryptocurrency prices, loads it into a postgres database, analyzes and transforms it with SQL commands, and finally makes a feature engineering process. After the data is fully processed, I explored two different ML models that performed pretty well making future predictions.

Along the process, I’ve interacted with an API and operated with a database. The codes were built in a modular fashion, allowing them to run in docker containers, and setting a wide variety of options for the users.

Finally, in the data engineering process and ML designs, I focused on making functional scripts and visualize the data as I process it. In that sense, I hope that you enjoyed reading this notebook, I tried to do it as clear as possible, including examples and guides.

As always, there is room for improvement, and in the following section I explain some of the ideas that I have that can enhance the project. Thanks for your attention!!

Upgrade perspectives

Easier interfacing for users

Right now, all source codes are run in dockers. However, because some dockers can’t see resources outside them, users have to manually input some parameters, for example in Stage 1:

docker run --rm --env-file "$(realpath ../../.env)" -u $(id -u):$(id -g) -v "$(pwd)/crypto_datafiles:/app/crypto_datafiles" api_request:latest --bulk --start 2024-09-01 --end 2025-07-31 bitcoin

Here, the user has to specifically map the local data files $(pwd)/crypto_datafiles to the docker working folder. A better solution could be design, maybe using Docker compose and setting all docker permissions and resources beforehand.

Stage 1: Skip duplicates

Currently, my script gets all the requested data and overwrites the existing information in the output folder. Taking into consideration that CoinGecko limits the frequency for requests, it would be very useful to skip those files that are already downloaded. This could be implemented in the script, by just checking before the request if the future output file is already in the output folder, in which case the request is skipped.

Stage 2: API+Postgres Integration

Currently, my workflow first downloads information from CoinGecko API to local files, and then uploads that information to a Postgres database. An optional functionality could be implemented to directly load the Postgres database from the API, without the need of storing local files.

Stage 3: Missing values sanity check

In Stage 3, the streaks must be calculated over a continuous period of time, then there cannot be missing values in the data. Alternatively, the time period can be restricted to the largest continuous interval. In the future, it would be helpful to implement a sanity check step, and either fill the missing values with some criteria, or deny the request if there are missing values in the dataset.

Stage 4: Dockerization and XGBRegressor

For this stage, I have chosen to use python scripting, without dockerization. Because the scripts are designed modularly, setting environmental variables and database connections can be repetitive and messy if not done properly. In the future, a proper dockerization, probably using Docker compose, can be implemented.

Regarding the ML training options, I chose to develop two simple options for the models, but the XGBRegressor should be easy to implement and has a lot of potential.

License

This project is licensed under the MIT License. You can learn more about it in the following link: MIT license - Wikipedia.

⬆️ Back to top
